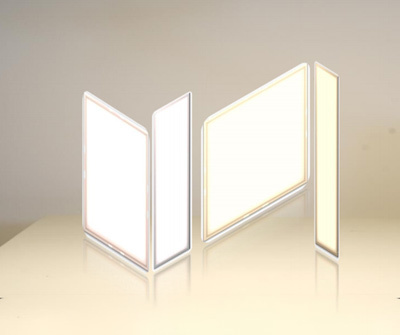

Lighting luminous board
Lighting luminous board

Lighting luminous board

In July 2019, VTEC Group and Xianyang Rainbow Optoelectronics Technology Co., Ltd. jointly established Xianyang Hongwei New Display Technology Co., Ltd. (CHVT), headquartered at No. 1 Gaoke 1st Road, Qindu District, Xianyang City, Shaanxi Province. The company is mainly engaged in the research and development, design, production and sales of OLED lighting lamps, lighting products and components, and strives to provide customers with high-quality products and after-sales service.

Contact UsTel: 86-021-64325386

  • Product description
  • Specifications
    item
    Model
    P09D
    Electrical Features
    Freeze forward current (A)
    1.4
    forward voltage (V)
    8.2
    Freeze frame power (W)
    11.5
    Optical Properties
    Full beam (lm)
    350
    Average luminance (cd/m2)
    6800
    Correlated Color Temperature (K)
    4000
    Color evaluation number Ra
    85
    Efficiency (lm/W)
    30
    Dimensions
    With heat sink LxWxD(mm)
    287x74x2.33
    No heat sink LxWxD(mm)
    284x71x1.83
    Weight (g)
    105
    Effective luminous area length x width x thickness (mm)
    269.8x58.4
    Illuminance
    40cm R300(Lx) 300
    Lifetime
    LT70 (hr) 5500
