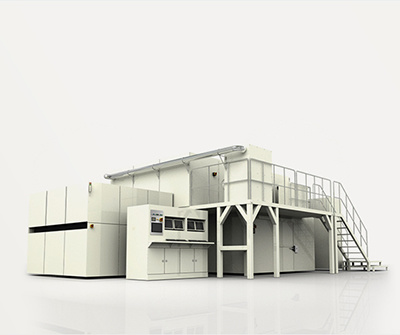

Photo Alignment Film Exposure Equipment AEGIS
AEGIS is the core manufacturing equipment of the CELL process (the lamination process of TFT substrate and color filter substrate), and plays an important role in the manufacture of liquid crystal displays. The device is a device that forms a functional polymer film called an alignment film that uses special ultraviolet light and a small photomask to orient the liquid crystal molecules inside the display in a certain direction.
The functional polymer film can be accurately and uniformly scanned and exposed thinly on a huge mother glass (up to approx. 3m x 4m) for high productivity and uniform exposure quality. In addition, compared with the conventional "rubbing method", since the alignment film is formed in a non-contact manner using light, defects such as foreign matter and scratches do not occur in principle, and a significant increase in yield can be expected.
- Product description
-
Features
High alignment accuracy
Use a CCD camera to view the actual pattern while correcting the exposure in real time to achieve ±1.5&mu ;m exposure position accuracy.No common defects occur
Due to the unique scanning exposure, in principle, it does not occur due to fine dust and foreign matter common defects.Reduce mask cost
Larger photomasks are more expensive to produce and tend to be more expensive. AEGIS can be exposed with a small mask, which can significantly reduce mask cost.High productivity
It uses airflow transfer technology to achieve high-precision continuous scan exposure at a stable transfer speed , higher productivity can be expected compared to conventional equipment.
